Brand Name : WITGAIN PCB
Model Number : Multi-Layer PCB000352
Certification : UL
Place of Origin : China
MOQ : 1 pcs/lot
Price : negotiable
Payment Terms : T/T
Supply Ability : 100k pcs/month
Delivery Time : 20 days
Packaging Details : Vacuum bubble bag packaging
No of layers : 8 layers
Solder Mask : Red Solder Mask
Min Hole Size : 0.15MM
CU Thickness : 1 OZ
Impedance Control : 50 ohm
Min Lind Space&Width : 3.5/3.5 mil
Red Solder Mask FR4 Substrate Material 1 OZ Copper Thickness OSP Treatment
PCB Specifications:
1 Part NO: Multi-Layer PCB000351
2 Layer Count: 8 Layer PCB
3 Finished Board Thickness: 1.6MM
4 Copper Thickness: 1/1/1/1/1/1 OZ
5 Min Lind Space&Width: 3.5/3.5 mil
6 Application Area: Amplifier
Material Data Sheet:
S1000-2 | |||||
Items | Method | Condition | Unit | Typical Value | |
Tg | IPC-TM-650 2.4.25 | DSC | ℃ | 180 | |
IPC-TM-650 2.4.24.4 | DMA | ℃ | 185 | ||
Td | IPC-TM-650 2.4.24.6 | 5% wt. loss | ℃ | 345 | |
CTE (Z-axis) | IPC-TM-650 2.4.24 | Before Tg | ppm/℃ | 45 | |
After Tg | ppm/℃ | 220 | |||
50-260℃ | % | 2.8 | |||
T260 | IPC-TM-650 2.4.24.1 | TMA | min | 60 | |
T288 | IPC-TM-650 2.4.24.1 | TMA | min | 20 | |
T300 | IPC-TM-650 2.4.24.1 | TMA | min | 5 | |
Thermal Stress | IPC-TM-650 2.4.13.1 | 288℃, solder dip | -- | 100S No Delamination | |
Volume Resistivity | IPC-TM-650 2.5.17.1 | After moisture resistance | MΩ.cm | 2.2 x 108 | |
E-24/125 | MΩ.cm | 4.5 x 106 | |||
Surface Resistivity | IPC-TM-650 2.5.17.1 | After moisture resistance | MΩ | 7.9 x 107 | |
E-24/125 | MΩ | 1.7 x 106 | |||
Arc Resistance | IPC-TM-650 2.5.1 | D-48/50+D-4/23 | s | 100 | |
Dielectric Breakdown | IPC-TM-650 2.5.6 | D-48/50+D-4/23 | kV | 63 | |
Dissipation Constant (Dk) | IPC-TM-650 2.5.5.9 | 1MHz | -- | 4.8 | |
IEC 61189-2-721 | 10GHz | -- | — | ||
Dissipation Factor (Df) | IPC-TM-650 2.5.5.9 | 1MHz | -- | 0.013 | |
IEC 61189-2-721 | 10GHz | -- | — | ||
Peel Strength (1Oz HTE copper foil) | IPC-TM-650 2.4.8 | A | N/mm | — | |
After thermal Stress 288℃,10s | N/mm | 1.38 | |||
125℃ | N/mm | 1.07 | |||
Flexural Strength | LW | IPC-TM-650 2.4.4 | A | MPa | 562 |
CW | IPC-TM-650 2.4.4 | A | MPa | 518 | |
Water Absorption | IPC-TM-650 2.6.2.1 | E-1/105+D-24/23 | % | 0.1 | |
CTI | IEC60112 | A | Rating | PLC 3 | |
Flammability | UL94 | C-48/23/50 | Rating | V-0 | |
E-24/125 | Rating | V-0 |
FAQ:
Q1: What are PCB Mouse bites?
A1:
Mouse bites also known as perforated breakaway tabs in a PCB are small perforations / pricks on the board which allow for panelizing and depanelizing smaller groups of PCBs together. This way multiple PCB boards can be assembled together, thereby saving time and making the process cost-effective. The assembled PCBs can be separated by applying pressure on the sections of the board that have perforations. Once separated, i.e after the depanelization process, the board looks like it has mouse bites in these sections.

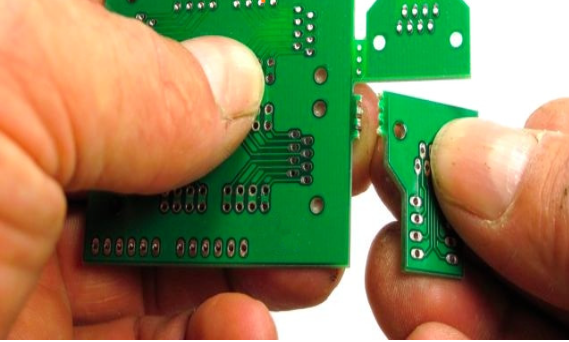

Below is an Image of PCBs assembled to each other with the help of mouse bites.

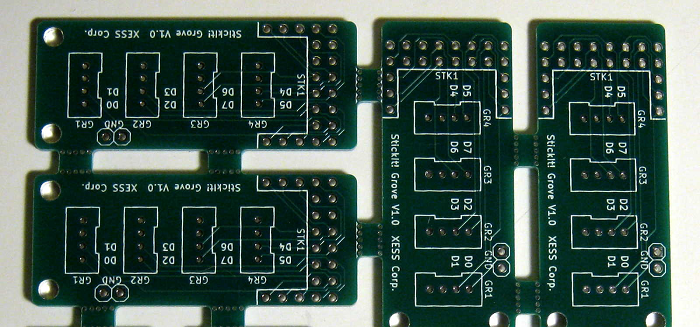

Below is an Image of a PCB being depaneled easily which is also made possible due to mouse bites. You can also see the sharp edges after the boards have been separated, these are called mouse bites.
When multiple PCBs are connected using mouse bites they have a smooth finish. When compared to PCB boards connected using V-Scoring, boards connected with mouse bites are easier to depanelize i.e they require less force.
Precautions to take before inserting Mouse bites on a PCB
![]() |

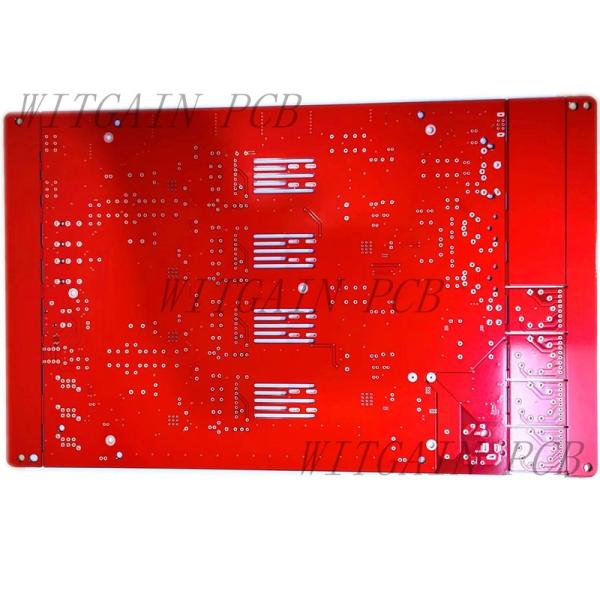

Red Solder Mask FR4 Circuit Board 1 OZ Copper Thickness OSP Treatment Images |
